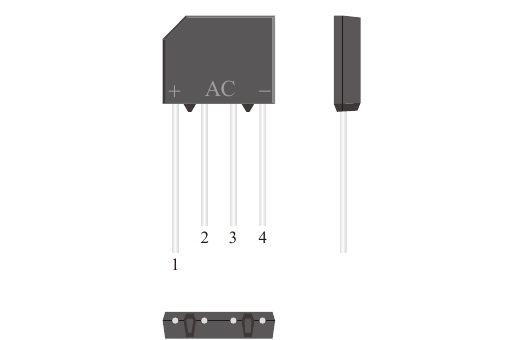

KBP · Datasheet illustration
Standard bridge rectifiers
KBP310
1000 V, 3 A single-phase bridge rectifier in a KBP package. Review the electrical ratings and operating conditions below, with complete details in the datasheet.
Repetitive peak reverse voltage
1000 V
Rating
Conditions
Repetitive peak reverse voltage, VRRM.
Average rectified output current
3 A
Rating
Conditions
See the forward-current derating curve and load conditions in the datasheet.
Forward voltage per diode
1.05 V
Maximum
Conditions
IF = 3 A; TA = 25 °C; per diode. Pulse test: 300 µs, 1% duty cycle.
Product status: MP
PRODUCT OVERVIEW
A closer look at KBP310.
1000 V, 3 A single-phase bridge rectifier in a KBP package. Review the electrical ratings and operating conditions below, with complete details in the datasheet.
- Standard rectifier chip technology
- Low forward voltage drop
- Low leakage current
- High surge current capability
Technical specifications
- Repetitive peak reverse voltage
1000 VRating
Repetitive peak reverse voltage, VRRM.
Datasheet p. 1- Average rectified output current
3 ARating
See the forward-current derating curve and load conditions in the datasheet.
Datasheet p. 1- Forward voltage per diode
1.05 VMaximum
IF = 3 A; TA = 25 °C; per diode. Pulse test: 300 µs, 1% duty cycle.
Datasheet p. 1- Non-repetitive surge current
55 ARating
8.3 ms single half-sine wave superimposed on rated load; per diode.
Datasheet p. 1- Reverse leakage current
5 µAMaximum
TA = 25 °C; VR = 1000 V (VRRM).
Datasheet p. 1- Junction temperature range
-55 to 150 °CRange
Operating junction temperature.
Datasheet p. 1
Values apply under their stated conditions. The datasheet includes the complete ratings, curves and package information.
