Input range
Check the voltage stress on the bridge across the intended line range and relevant transient conditions.
DRIVER & POWER SUPPLY DESIGN
LED lighting
Explore input rectification and component requirements for LED driver power supplies, with attention to package size and operating temperature.
Explore component selectionFUNCTIONAL OVERVIEW
- 01followed by
AC input
Line range & startup conditions
- 02followed by
Bridge rectifier
Package, IF(AV), VRRM & IFSM
- 03
Driver & LED load
Current control & thermal design
Functional overview of an AC-powered LED driver. Protection, filtering, isolation and current regulation depend on the topology.
APPLICATION OVERVIEW
Understand the circuit requirements.
LED driver designs need an appropriate power conversion stage for the supply and the LED load. For an AC-powered driver, the input bridge is one part of that wider circuit.
The driver topology, input range, current waveform and enclosure temperature provide the context for rectifier selection. Package choice should be considered alongside the electrical ratings and the available thermal path.
DESIGN CONSIDERATIONS
The details behind component selection.
Startup current
Evaluate inrush from the input network. The non-repetitive IFSM rating has a specified test waveform and does not replace circuit-level startup evaluation.
Package constraints
Compare the PCB footprint and pin arrangement in the package drawing, as well as assembly and enclosure constraints.
Operating temperature
Review dissipation, ambient temperature and heat transfer in the completed driver. Read the conditions attached to current and thermal ratings.
COMPONENT SELECTION
A starting point for your design.
Bridge rectifiers illustrate package choices for input rectification. For switching stages that require an external high-voltage transistor, review the MOSFET category separately against the controller, gate drive and circuit stresses. Confirm voltage, current, surge and thermal performance for the complete driver.

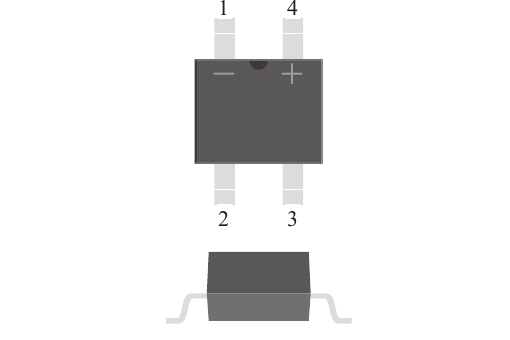

MBS
MB10S1000 V, 1 A single-phase bridge rectifier in a MBS package. Review the electrical ratings and operating conditions below, with complete details in the datasheet.
1000 VView product

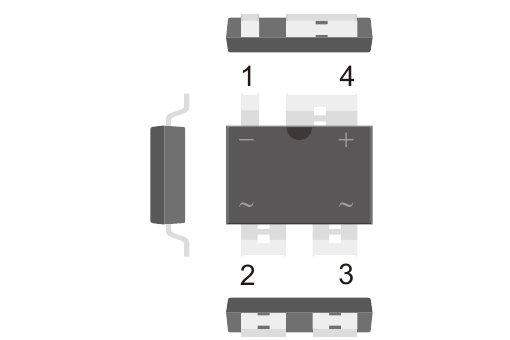

LDB-S
LDB10M1000 V, 10 A single-phase bridge rectifier in a LDB-S package. Review the electrical ratings and operating conditions below, with complete details in the datasheet.
1000 VView product
ABS
ABS101000 V, 1 A single-phase bridge rectifier in a ABS package. Review the electrical ratings and operating conditions below, with complete details in the datasheet.
1000 VView product
