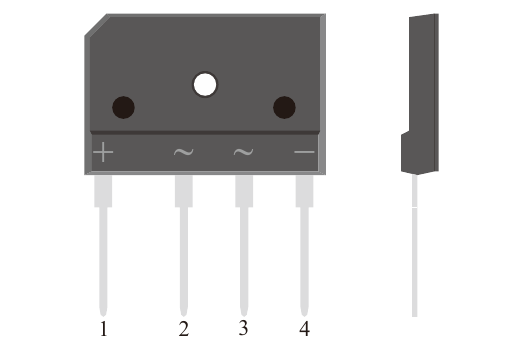

GBJ · Datasheet illustration
Standard bridge rectifiers
GBJ2012
1200 V, 20 A single-phase bridge rectifier in a GBJ package. Review the electrical ratings and operating conditions below, with complete details in the datasheet.
Repetitive peak reverse voltage
1200 V
Rating
Conditions
Repetitive peak reverse voltage, VRRM.
Average rectified output current
20 A
Rating
Conditions
With heatsink at 100 °C; see datasheet derating curve. Without heatsink: 4.1 A at 25 °C.
Forward voltage per diode
1 V
Maximum
Conditions
IF = 10 A; TA = 25 °C; per diode. Pulse test: 300 µs, 1% duty cycle.
Product status: MP
PRODUCT OVERVIEW
A closer look at GBJ2012.
1200 V, 20 A single-phase bridge rectifier in a GBJ package. Review the electrical ratings and operating conditions below, with complete details in the datasheet.
- Standard rectifier chip technology
- Low forward voltage drop
- Low leakage current
- High surge current capability
Technical specifications
- Repetitive peak reverse voltage
1200 VRating
Repetitive peak reverse voltage, VRRM.
Datasheet p. 1- Average rectified output current
20 ARating
With heatsink at 100 °C; see datasheet derating curve. Without heatsink: 4.1 A at 25 °C.
Datasheet p. 1- Forward voltage per diode
1 VMaximum
IF = 10 A; TA = 25 °C; per diode. Pulse test: 300 µs, 1% duty cycle.
Datasheet p. 1- Non-repetitive surge current
260 ARating
8.3 ms single half-sine wave superimposed on rated load; per diode.
Datasheet p. 1- Reverse leakage current
5 µAMaximum
TA = 25 °C; VR = 1200 V (VRRM).
Datasheet p. 1- Junction temperature range
-55 to 150 °CRange
Operating junction temperature.
Datasheet p. 1
Values apply under their stated conditions. The datasheet includes the complete ratings, curves and package information.
Documents & downloads
GBJ2012 datasheet
PDF · English
