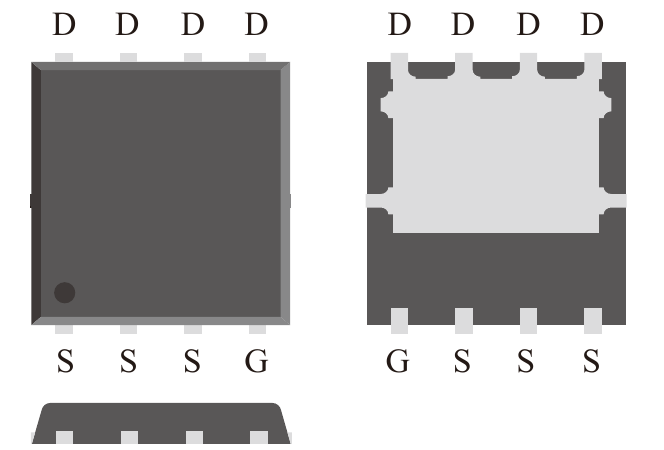

PDFN3*3 · Datasheet illustration
Low-voltage MOSFETs
NTS036N03P3
30 V N-channel enhancement-mode trench MOSFET in a PDFN3*3 package, with a 120 A drain-current rating under the datasheet conditions. On-resistance values below retain their gate-drive and test-current conditions.
Drain-source voltage (VDS)
30 V
Rating
Conditions
Absolute maximum drain-source voltage; TA = 25 °C unless otherwise specified.
Continuous drain current (ID)
120 A
Rating
Conditions
TA = 25 °C, as stated in the absolute maximum ratings table. Note 1: pulse width limited by maximum junction temperature; see datasheet derating and SOA.
RDS(on), max, |VGS| = 10 V
4 mΩ
Maximum
Conditions
VGS = 10 V; ID = 20 A; TA = 25 °C.
Product status: MP
PRODUCT OVERVIEW
A closer look at NTS036N03P3.
30 V N-channel enhancement-mode trench MOSFET in a PDFN3*3 package, with a 120 A drain-current rating under the datasheet conditions. On-resistance values below retain their gate-drive and test-current conditions.
- Enhancement-mode trench MOSFET
- Single-channel device
- On-resistance specified at multiple gate-drive voltages
Technical specifications
- Channel
N-channel
Enhancement-mode trench MOSFET; single device.
Datasheet p. 1- Drain-source voltage (VDS)
30 VRating
Absolute maximum drain-source voltage; TA = 25 °C unless otherwise specified.
Datasheet p. 1- Continuous drain current (ID)
120 ARating
TA = 25 °C, as stated in the absolute maximum ratings table. Note 1: pulse width limited by maximum junction temperature; see datasheet derating and SOA.
Datasheet p. 1- RDS(on), max, |VGS| = 10 V
4 mΩMaximum
VGS = 10 V; ID = 20 A; TA = 25 °C.
Datasheet p. 2- RDS(on), max, |VGS| = 4.5 V
6 mΩMaximum
VGS = 4.5 V; ID = 20 A; TA = 25 °C.
Datasheet p. 2- Gate-source voltage rating (VGS)
-20 to 20 VRange
Absolute maximum gate-source voltage.
Datasheet p. 1- Total gate charge (Qg)
50 nCTypical
VDS = 15 V; VGS = 10 V; ID = 20 A; TA = 25 °C.
Datasheet p. 2- Power dissipation (PD)
83 WMaximum
TA = 25 °C, as stated in the absolute maximum ratings table; see thermal conditions and derating in the datasheet.
Datasheet p. 1- Junction temperature range
-55 to 150 °CRange
Operating junction temperature.
Datasheet p. 1
Values apply under their stated conditions. The datasheet includes the complete ratings, curves and package information.
Documents & downloads
NTS036N03P3 datasheet
PDF · English · A/1 · 2014-10-20
Typical applications
- DC–DC converters
- Battery management systems
- Control circuits
- Uninterruptible power supplies
