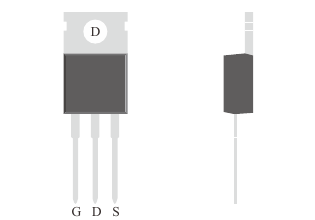

TO-220C · Datasheet illustration
Medium-voltage MOSFETs
NPS18N20C
200 V N-channel planar dmos MOSFET in a TO-220C package, with a 18 A drain-current rating under the datasheet conditions. Maximum on-resistance is specified separately at each gate-drive voltage.
Drain-source voltage (VDS)
200 V
Rating
Conditions
Absolute maximum drain-source voltage; TA = 25 °C unless otherwise specified.
Continuous drain current (ID)
18 A
Rating
Conditions
TA = 25 °C, as printed in the absolute maximum ratings table. Note 1: pulse width limited by maximum junction temperature; see the datasheet derating curves and safe operating area.
RDS(on), max, |VGS| = 10 V
150 mΩ
Maximum
Conditions
VGS = 10 V; ID = 9 A; TA = 25 °C.
Product status: MP
PRODUCT OVERVIEW
A closer look at NPS18N20C.
200 V N-channel planar dmos MOSFET in a TO-220C package, with a 18 A drain-current rating under the datasheet conditions. Maximum on-resistance is specified separately at each gate-drive voltage.
- Planar DMOS technology
- N-channel enhancement-mode device
- Maximum on-resistance specified at multiple gate-drive voltages
Technical specifications
- Channel
N-channel
N-channel enhancement-mode MOSFET; single device.
Datasheet p. 1- MOSFET technology
Planar DMOS
Technology identified in the p. 1 device heading and features.
Datasheet p. 1- Drain-source voltage (VDS)
200 VRating
Absolute maximum drain-source voltage; TA = 25 °C unless otherwise specified.
Datasheet p. 1- Continuous drain current (ID)
18 ARating
TA = 25 °C, as printed in the absolute maximum ratings table. Note 1: pulse width limited by maximum junction temperature; see the datasheet derating curves and safe operating area.
Datasheet p. 1- RDS(on), max, |VGS| = 10 V
150 mΩMaximum
VGS = 10 V; ID = 9 A; TA = 25 °C.
Datasheet p. 2- RDS(on), max, |VGS| = 4.5 V
225 mΩMaximum
VGS = 4.5 V; ID = 9 A; TA = 25 °C.
Datasheet p. 2- Gate-source voltage rating (VGS)
-30 to 30 VRange
Absolute maximum gate-source voltage.
Datasheet p. 1- Gate threshold voltage (VGS(th))
2.1 to 3.8 VRange
VGS = VDS; ID = 250 µA; TA = 25 °C.
Datasheet p. 2- Total gate charge (Qg)
25 nCTypical
VDS = 100 V; VGS = 10 V; ID = 9 A; TA = 25 °C.
Datasheet p. 2- Power dissipation (PD)
179 WMaximum
TA = 25 °C, as printed in the absolute maximum ratings table; see the datasheet thermal conditions and derating.
Datasheet p. 1- Junction temperature range
-55 to 150 °CRange
Operating junction temperature range.
Datasheet p. 1
Values apply under their stated conditions. The datasheet includes the complete ratings, curves and package information.
