RGBJ2510

Technical specifications

Bridge configuration

Single-phase bridge

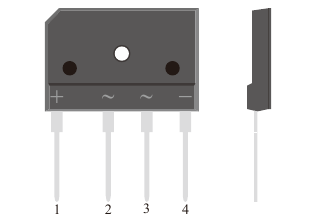

Four-diode bridge connection and two AC terminals shown in the p. 1 polarity diagram.

Datasheet p. 1

Repetitive peak reverse voltage

1000 VMaximum

Maximum repetitive peak reverse voltage; TA = 25 °C unless otherwise specified.

Datasheet p. 1

Average rectified output current

25 AMaximum

With heatsink at 100 °C; TC identified in the p. 2 derating curve. Refer to the datasheet thermal and mounting conditions. Single-phase, half-wave, 60 Hz, resistive or inductive load; derate current by 20% for a capacitive load.

Datasheet p. 1

Non-repetitive surge current

300 AMaximum

8.3 ms single half sine-wave superimposed on rated load; TA = 25 °C unless otherwise specified. See the p. 2 surge curve.

Datasheet p. 1

Reverse recovery time (trr), typ

200 nsTypical

IF = 0.5 A; IR = 1.0 A; IRR = 0.25 A; TA = 25 °C. Listed in the Typ. column; the Max. column is blank.

Datasheet p. 1

Forward voltage per diode

1.1 VMaximum

Per diode; IF = 12.5 A; TA = 25 °C. Pulse test: 300 µs pulse width, 1% duty cycle.

Datasheet p. 1

Reverse leakage current

5 µAMaximum

TA = 25 °C; VR = VRRM.

Datasheet p. 1

IF(AV), without heatsink

3.6 AMaximum

Without heatsink at 25 °C, as stated in the p. 1 current-rating table. Single-phase, half-wave, 60 Hz, resistive or inductive load; derate current by 20% for a capacitive load.

Datasheet p. 1

Junction temperature range

-55 to 150 °CRange

Operating junction temperature range.

Datasheet p. 1

Values apply under their stated conditions. The datasheet includes the complete ratings, curves and package information.
